Open Frame

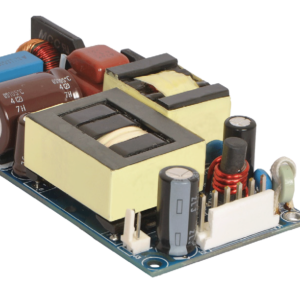

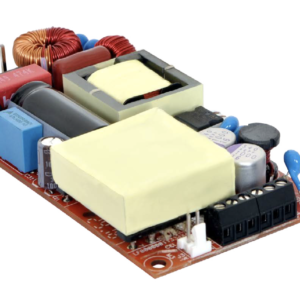

Digital Power’s Open-Frame products are the industry’s smallest open frame AC/DC switchers, delivering up to 800 W of continuous power from one to four outputs. These power supplies incorporate active power factor correction and 85–264VAC universal input, making them ideal for use worldwide. The Open Frame products are built in a 3” x 5” or a 4” x 7” 1U configuration, making them the highest density open frame power supplies available on the market today.

Optional DC Input models are especially configured for the telecom market. Built-in “O-Ring” diodes for N+N and N+1 redundancy configurations are included in our standard product which provides for redundancy and hot swap applications. Very high efficiency and power density result from the use of advanced component and circuit technologies, such as synchronous rectification, low profile transformer and SMT components.

These Open Frame series provides design engineers with a power platform with the flexibility to meet virtually any design requirement. In addition to standard products, custom power supplies that offer almost any voltage and current combinations are available upon request. Digital Power also offers Open Frame power platform solutions that include any or all of the following features:

  • Hot-swap/redundant configuration
  • Enclosure
  • Fans
  • Power supply encapsulation
  • I/O connectors
  • Back plane
  • Wiring assemblies (harnesses and cabling)
  • Ruggedized configuration (conformal coating)

Showing 1–16 of 452 results


Product Product Image Output Voltage Output Watts Package Size(mm)
  • Placeholder

    ,5
    70
    5.0X3.30X1.50
  • Placeholder

    ,12
    70
    5.0X3.30X1.50
  • Placeholder

    ,15
    70
    5.0X3.30X1.50
  • Placeholder

    ,24
    70
    5.0X3.30X1.50
  • Placeholder

    ,48
    70
    5.0X3.30X1.50
  • Placeholder

    ,5
    50
    5.0X3.0X1.20
  • Placeholder

    ,12
    50
    5.0X3.0X1.20
  • Placeholder

    ,15
    50
    5.0X3.0X1.20
  • Placeholder

    ,24
    50
    5.0X3.0X1.20
  • Placeholder

    ,48
    50
    5.0X3.0X1.20
  • DP100-105

    ,5
    100
    5.0X3.30X1.50
  • DP100-112

    ,12
    100
    5.0X3.30X1.50
  • DP100-115

    ,15
    100
    5.0X3.30X1.50
  • DP100-124

    ,24
    100
    5.0X3.30X1.50
  • DP100-148

    ,48
    100
    5.0X3.30X1.50
  • DP50-105

    ,5
    50
    5.0X3.0X1.20
