HD240

Universal AC Input 90-264VAC, 2″ x 4″ Footprint, Single Main Output plus Aux. 12V-48V

Price $0

Price Break/Unit Price


Request Lead Time

REQUEST MODIFICATION

Submit Request

Description

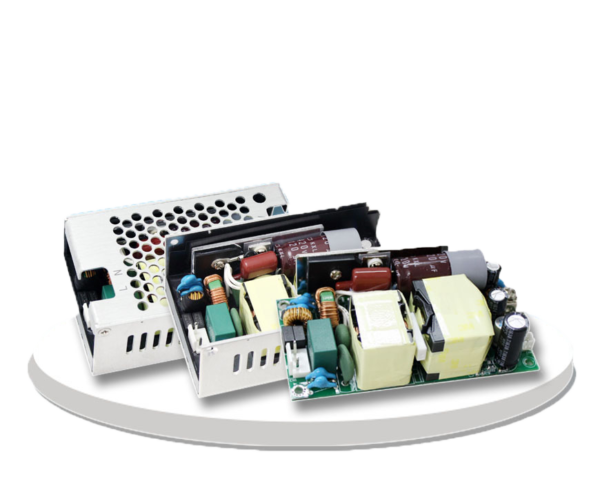

Digital Power’s HD Series are single output switchers, produce 12VDC, 24VDC, 48VDC with superior power in natural convection operation environment.

Featured with compact, low profile footprint, and best-in-class performance, HD Series are optimal for broad Industrial and Telecommunication Applications.

General Specifications

Input Type

AC-DC
Input Voltage AC

90V to 264V
Input Voltage DC

N/A
PFC

Yes
Efficiency

92%-94%
Output Voltage

12,24,48V
Output Power

210-234W
Number of Outputs

1
Temperature Range

-30C to +80C
Package Type

N/A
Package Size

2 x 4
Market Application

Telecommunications
Safety Approval

UL 60950-1, UL / IEC / EN 62368-1
