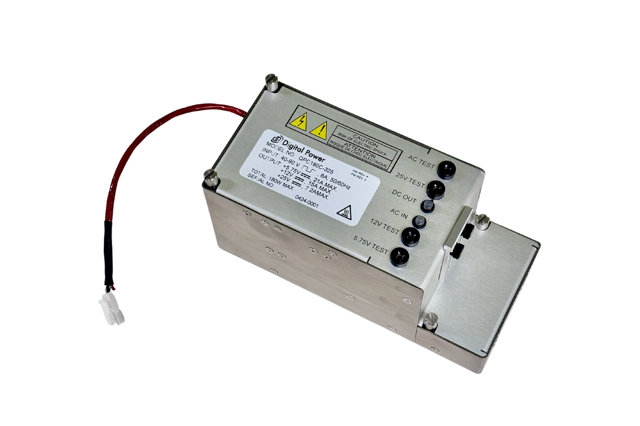

DPQ180E-325

180W Quasi- Square-wave Power Supply

Price $

Price Break/Unit Price


Request Lead Time

REQUEST MODIFICATION

Submit Request

Description

The DPQ180E-325 is a wide range Quasi-Square-Wave input voltage range of 40Vac to 90Vac to three voltage output of 25Vdc, 12Vdc and 5.75dc. The Power Converter delivers exceptional performance and efficiency, making it the ideal choice in the Cable and telecommunication industry.

The DPQ180E-325 Power converter is a 90% high efficiency that supports temperature range from -40C to 85C base plate. It is fully protected against over-temperature, over voltage, under-voltage, over current, short circuit. All safety features are Auto Restart.

The DPQ180E-325 meets rigorous standards suitable for harsh operating conditions. It complies with GAP ANSI/SCTE 273-1 American National Standard.

General Specifications

Input Type

Input Voltage AC

40V to 90V
Input Voltage DC

N/A
PFC

N/A
Efficiency

90%
Output Voltage

5.75V, 12V, 25V
Output Power

180W
Number of Outputs

1
Temperature Range

-40C to +90C
Package Type

Enclosed
Package Size

N/A
Market Application

Telecommunications
Safety Approval

IEC60950-1, EN60950-1, UL60950-1, UL/CSA/IEC 62368-1.
